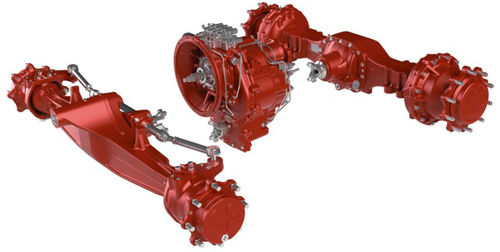

2WS BHL FRONT STEER MODEL
MODEL 26.00 26.16 26.22 26.24
Overall width mm 1,900 1,980 2,080 2,165
2,000 2,080 2,080
Flange to flange distance mm 1,820 1,820 1,920 1,905
1,910 1,920 1,920
Wheel mounting dimension mm n° 8 5/8M8 n° 8 M18X1.5 n° 8 M18X1.5 n°8M18xl.5
on 203.2 mm 0 on 275 mm 0 on 275 mm 0 on 275 mm 0
Max steering angle 60° 55° 55° 55°
Peak torque kNm - 24 31 34
Dynamic load capacity kN 80 80 95 95
Static load capacity kN 200 200 237.5 237.5

Parameter Name	Parameter Value
Product applications	transmission
